W8
• Drivers
LF: 1×8"
HF: 1 x 1.5" neodymium coaxial driver
• Dispersion
110° axisymmetric
• Max SPL (Peak)
127dB
- Commodity name： W8
Overview

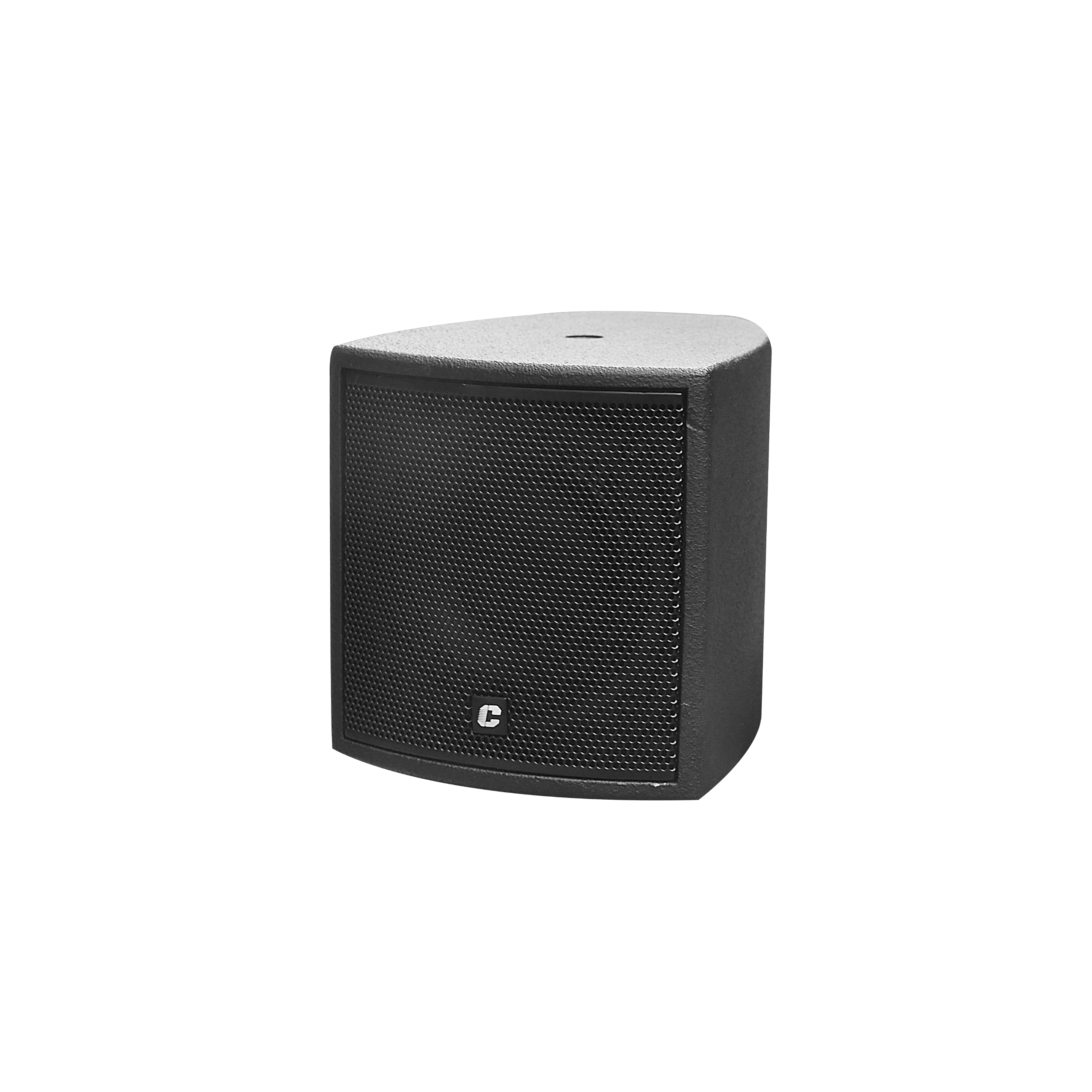

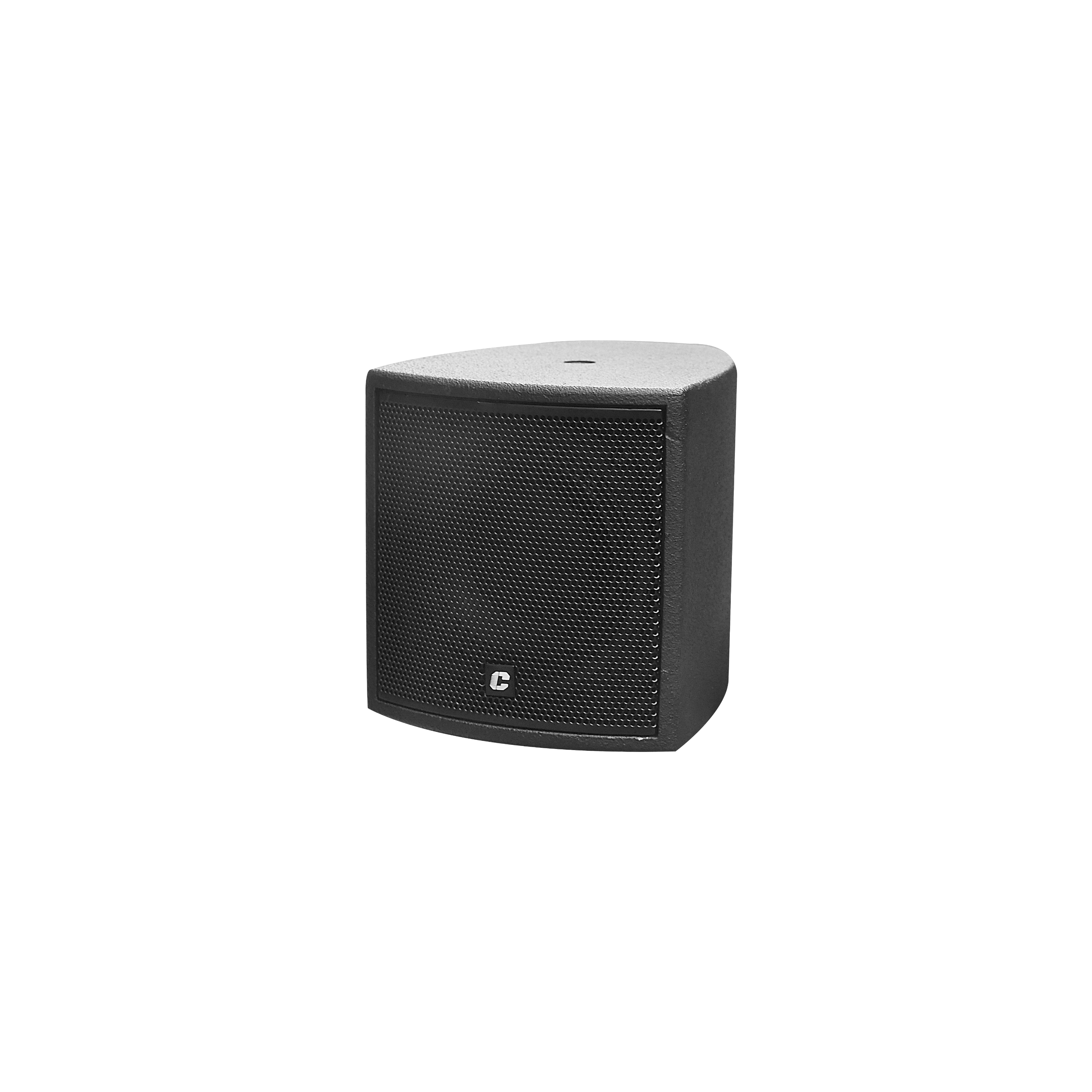

W8 is an ultra-compact passive coaxial speaker designed for stage monitoring and fixed installations. It features an 8" woofer and a 1.5" compression driver in a true coaxial configuration, ensuring uniform phase alignment and smooth nearfield response.
The 100° symmetrical coverage delivers consistent sound across the listening area.
With a ported cabinet, high-efficiency crossover, and refined composite diaphragm, W8 offers detailed highs, tight lows, and peak SPL up to 127dB — ideal for live stages and mobile setups.
Specifications
| Drivers | LF 1×8" (200mm) HF 1×1.5" (38mm) neodymium coaxial driver |
| Frequency Range(-10dB) | 60Hz~20kHz |
| Dispersion(-6dB) | 110° axisymmetric |
| Sensitivity (1M/1W) | 97dB |
| Max SPL | 121dB (continuous)/127dB (peak) |
| Rated Power (AES) | 250W |
| PEAK Power | 1000W |
| Impedance | 8Ω |
| Dimensions ( HxWxD ) | 424 x 250 x 264 mm |
| Net Weight | 12 kg |
Dimensions
