PY12
• Drivers
LF: 1×12"
HF: 1×1.75"
• Dispersion
Hor.70°x Vert.60°
• Max SPL (Peak)
130dB
- Commodity name： PY12
Overview
PY12 is a compact full-range loudspeaker equipped with a 12" LF driver and a 1.75" HF compression driver, delivering clear, powerful sound with 98dB sensitivity and a peak SPL of 130dB. Its 400W AES-rated power ensures reliable high-output performance across a 50Hz–20kHz frequency range. The cabinet offers 70°×60° dispersion for consistent coverage, while its reinforced enclosure minimizes energy loss and enhances tonal clarity. With flexible mounting options, PY12 is ideal for mobile setups, multifunction venues, churches, and small live events.
Specifications
| Drivers | LF 1×12" (315mm) HF 1×1.75" (44mm) |
| Frequency Range(-10dB) | 50Hz~20kHz |
| Dispersion(-6dB) | Hor.70°x Vert.60° |
| Sensitivity (1M/1W) | 98dB |
| Max SPL | 124dB (continuous)/130dB (peak) |
| Rated Power (AES) | 400W |
| PEAK Power | 1600W |
| Impedance | 8Ω |
| Dimensions ( HxWxD ) | 624 x 378 x 424 mm |

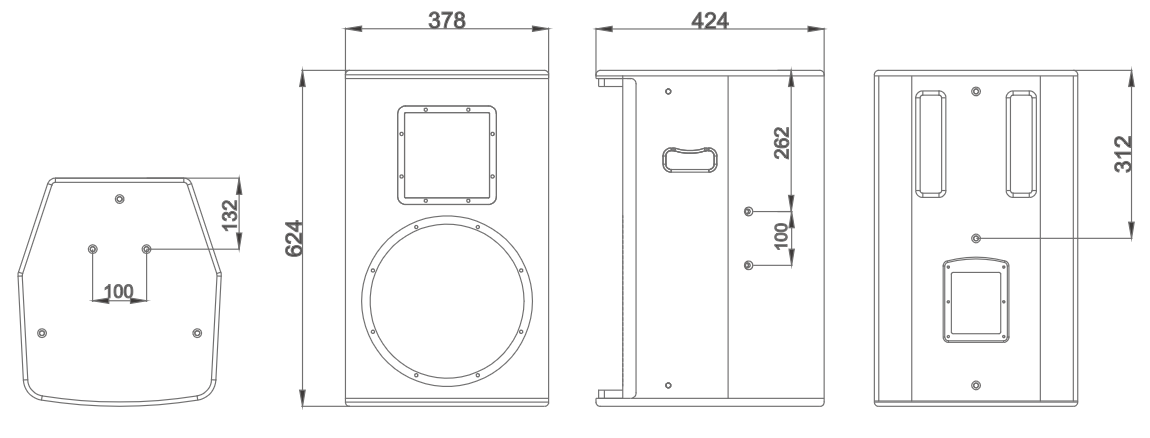

Dimensions
