DPA48Q
• Max Input Level
+18dBu
• Max Output Level
+18dBu
- Commodity name： DPA48Q
Overview

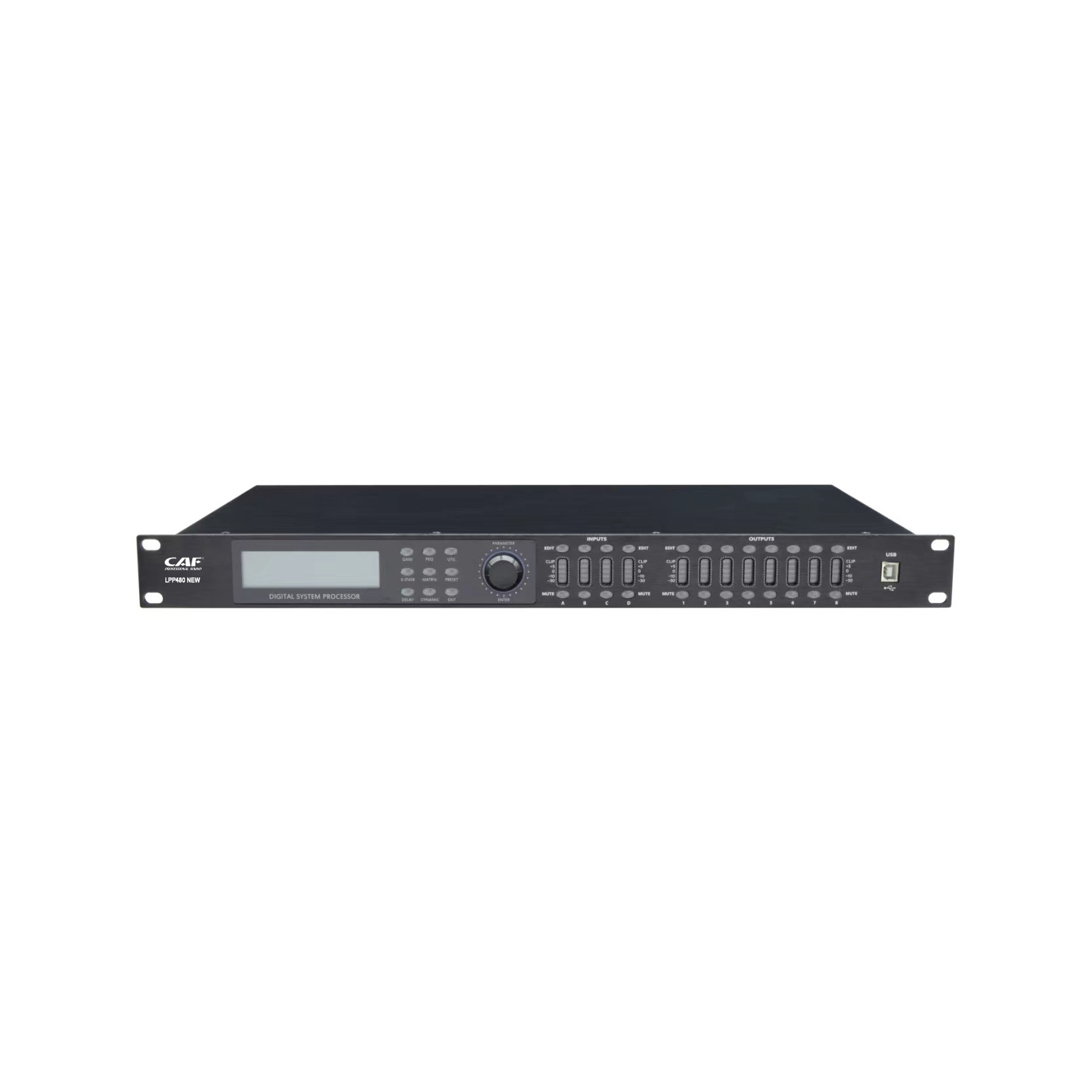

DPA48Q Digital Audio Processor is a high-performance 4-input, 8-output processor designed for professional audio applications. It features a 32-bit DSP chip, 48kHz sampling rate, and 24-bit AD/DA conversion. Advanced processing functions include high/low-pass filters, 5-band PEQ, noise gates, compression, delay, and phase adjustments. The system supports matrix routing, precise phase curve control, and customizable filter types. It also includes a built-in signal generator, with USB, RS232/485, and Ethernet remote control options, ideal for high-end audio systems.
Specifications
| Max Input Level | +18dBu |
| Max Output Level | +18dBu |
| Frequency response (-0.3dB) | 20Hz~20kHz |
| Dynamic range | >115dBu |
| THD | <0.005% at 1kHz (0dBu) |
| Crosstalk | >70dBu, 20Hz~20kHz |
| Total analog system ratio | >75dBu 1KHz Input part |
| Type | Balanced XLR connection |
| Impedance | 1MΩ/stereo; 500KΩ/Mono Output section |
| AC Power Operating Range | AC 95V~250V, 50/60Hz |
| Dimensions (HxWxD) | 44 x 482 x 305 mm |
Dimensions
