VH18SUB
• Drivers
1x 18" bass
• Max SPL (Peak)
134dB
- Commodity name： VH18SUB
Overview
VH18SUB is a powerful active subwoofer designed to deliver deep, punchy bass that enhances any audio experience. Featuring a single 18-inch bass driver, it covers a frequency range of 38Hz to 300Hz, ensuring robust low-end support. With a 700W AES-rated power and a 3-channel DSP Class D amplifier, it provides clear, impactful bass with impressive efficiency. Capable of reaching a peak SPL of 134dB, it effortlessly fills any venue with powerful sound. VH18SUB perfectly complements VH110 line array, offering the essential low-frequency reinforcement needed to balance the full-range sound, making it ideal for any performance.
▶️ Installation Guide on Youtube
Specifications
| Drivers | 1 x 18"(460mm) bass |
| Frequency Response (-5dB) | 38Hz~300Hz |
| Dispersion (-6dB) | / |
| Max SPL | 128dB (continuous)/134dB (peak) |
| Rated Power (AES) | 700W |
| Amplifier Circuitry | 3 Channel DSP, Class D |
| Amplifier Input Sensitivity | 1V |
| Output Power | 4Ω/2 x 800W + 4Ω/1600W |
| Impedance | 8Ω |
| Dimensions ( HxWxD ) | 690 x 515 x 650 mm |
| Net Weight | 55 kg |

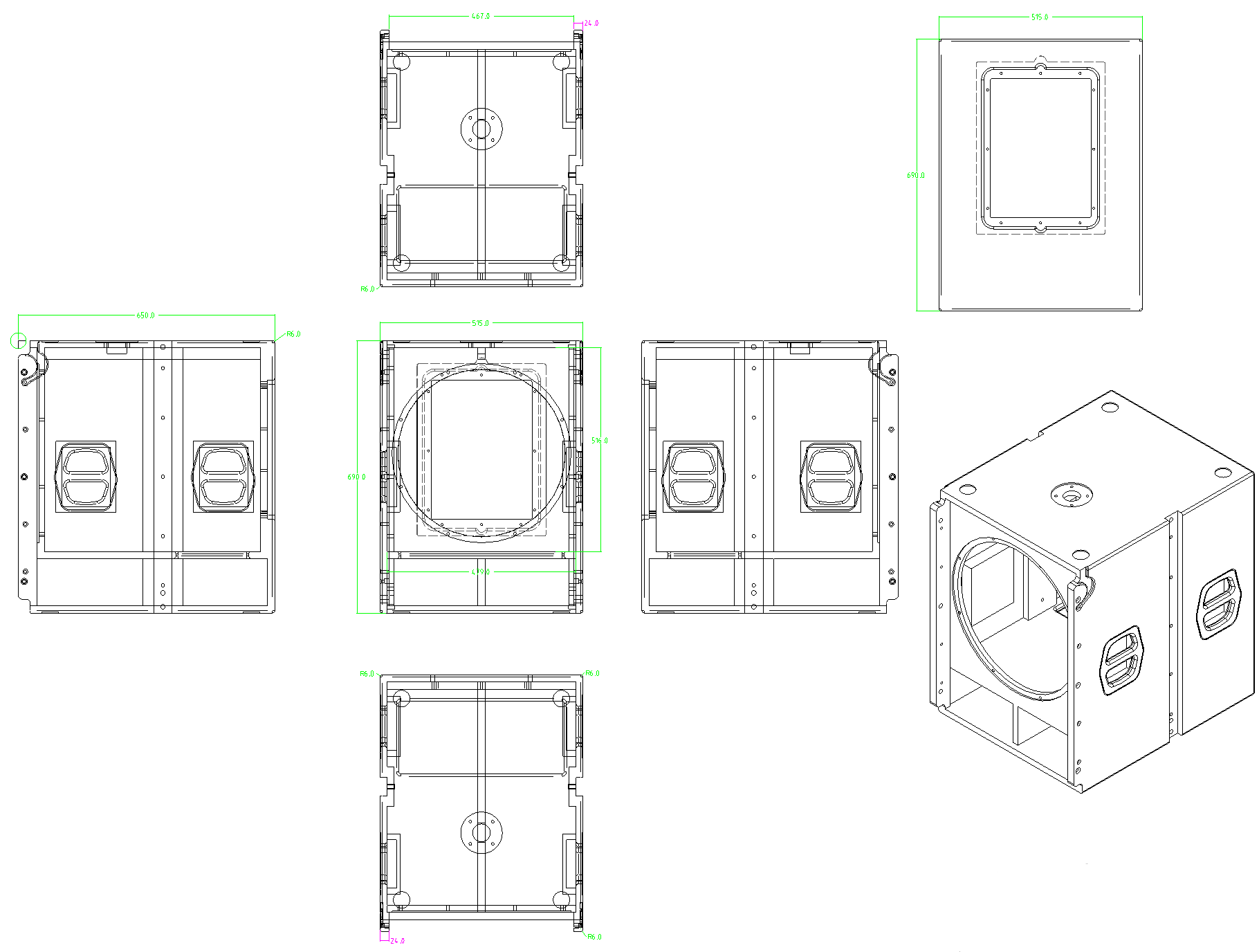

Dimensions
