FT15SM
• Drivers
LF: 1 x 15"
HF: 1 x 1.75"coaxial driver
• Dispersion
Hor.80°x Vert.80°
• Max SPL (Peak)
129dB
- Commodity name： FT15SM
Overview

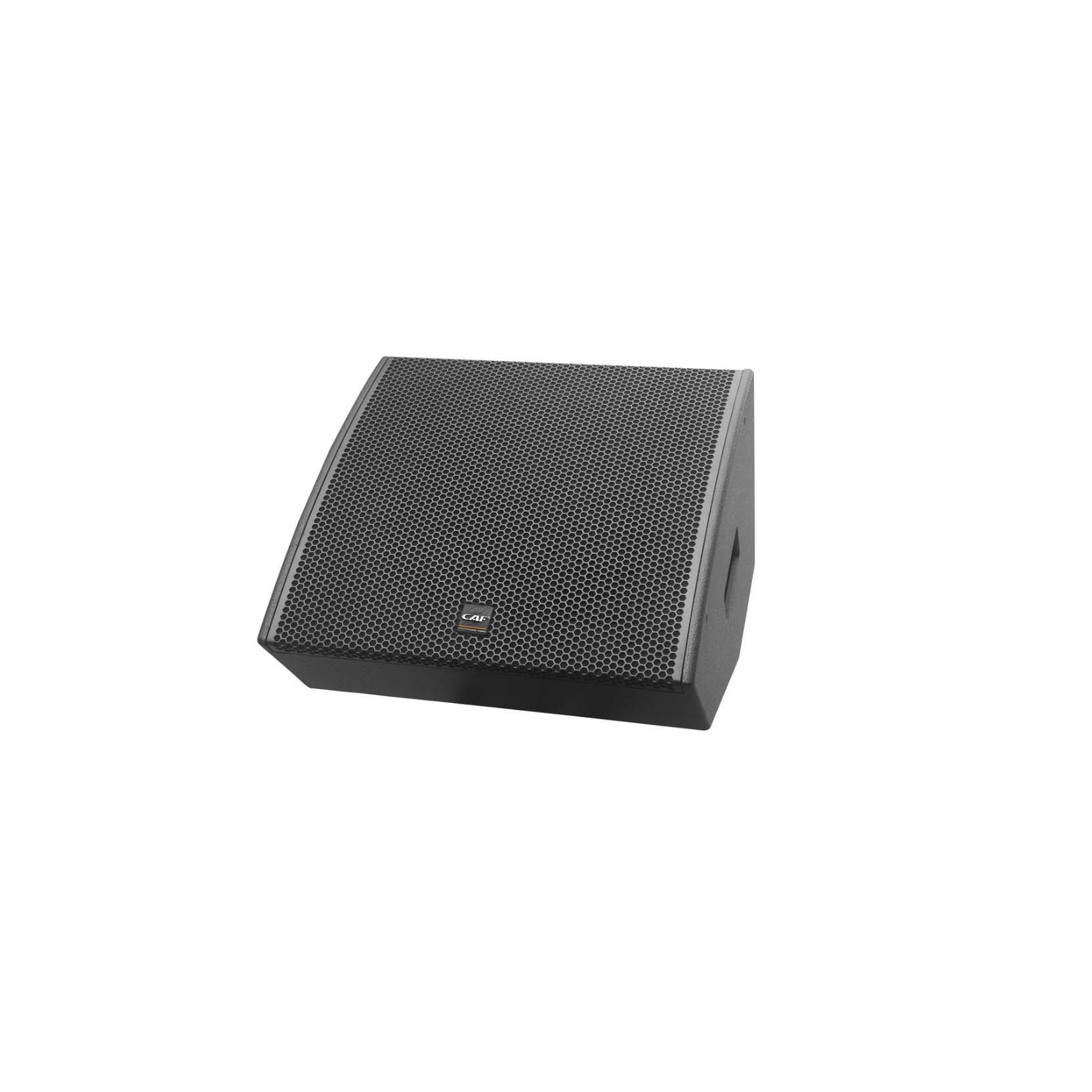

FT15SM is a powerful passive stage monitor featuring a 15″+1.75″ coaxial driver for extended low-end response and vocal clarity. The cabinet is built with a rugged bass reflex design and finished with eco-friendly water-based paint for enhanced environmental protection. Its high-sensitivity output, phase-corrected crossover, and wide 80°×80° coverage ensure consistent, transparent sound across the stage. Designed for professional live sound applications, FT15SM delivers rich, dynamic performance for concerts, theaters, and multi-purpose venues.
Specifications
| Drivers | LF 1x15"(380mm) HF 1x1.75"(44mm) coaxial driver |
| Frequency Response (-10dB) | 55Hz~20kHz |
| Dispersion | Hor.80°x Vert.80° |
| Sensitivity (1M/1W) | 98dB |
| Max SPL | 123dB (continuous)/129dB (peak) |
| Rated Power (AES) | 350W |
| PEAK Power | 1400W |
| Impedance | 8Ω |
| Dimensions ( HxWxD ) | 542 x 570 x 363 mm |
| Net Weight | 17.5 kg |
Dimensions
