L1 II
• Drivers
MLF: 4 x 4.5"
HF: 3×1.4″, 1″throat compression driver
• Dispersion
Hor.110°× Vert.30°
• Max SPL（Peak）
MLF:134dB HF:137dB
- Commodity name： L1 II
Overview
L1 II is a powered column speaker system combining line source technology with plug-and-play convenience. Featuring four 5″ woofers and three 1″ throat compression drivers, L1 II delivers wide 110°×30° coverage, smooth frequency response, and outstanding vocal clarity. Its built-in DSP offers precise control including EQ, FIR, crossover, delay, and limiting. Paired with the L1 IISA subwoofer, L1 II forms a flexible, high-fidelity system with extended low-end, perfect for conferences, bands, theaters, churches, and multifunction halls.
Specifications
| Drivers | MLF 4 x 5" (178mm) HF 3×1.4″ (36mm), 1″throat compression driver |
| Frequency Response (-6dB) | MLF 100Hz～3KHz HF 2KHz～20KHz |
| Dispersion (-6dB) | Hor.110°× Vert.30° |
| Max SPL | MLF 128dB (continuous)/134dB (peak) HF 131dB (continuous)/137dB (peak) |
| Rated Power (AES) | MLF 480W HF 180W |
| PEAK Power | MLF 1920W HF 720W |
| Impedance | MLF 8Ω HF 8Ω |
| Input/Output Connectors | XLR-F/M |
| Dimensions ( HxWxD ) | 1305x 163.5 x 184 mm |
| Net Weight | 13.85 kg |

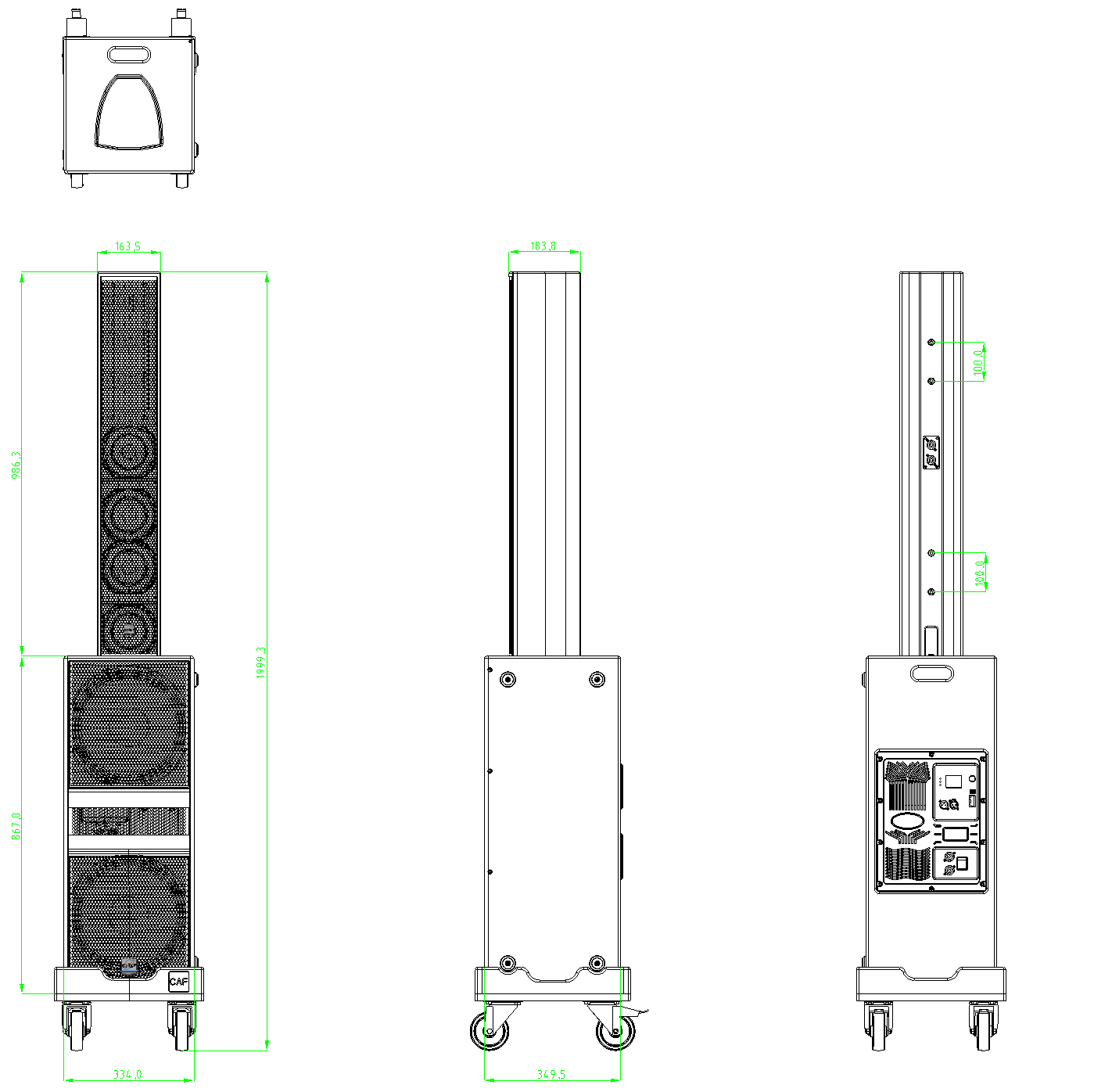

Dimensions
