VS808 MAX
• Drivers
MF: 8 x 3" neodymium
HF: 8 x 1" neodymium
• Dispersion
Hor. 120° x Vert. 16°
• Max SPL（Peak）
130dB
- Commodity name： VS808 MAX
Overview
VS808 MAX is a high-output, compact line array featuring 8 x 3-inch neodymium midrange drivers and 8 x 1-inch neodymium high-frequency drivers. Its hornless design ensures 120° horizontal and 16° vertical coverage, delivering clear and natural sound with minimal distortion. Powered by an 800W Class D amplifier, it achieves a peak SPL of 130dB. Built-in DSP provides 6 preset programs for optimized audio quality.
VS808 MAX, VS212SUB MAX, and VS118SUB MAX are designed to function both as a combined audio solution and as standalone units. VS808 MAX can be paired with either VS212SUB MAX or VS118SUB MAX for extended low-frequency performance. Each speaker comes with an integrated amplifier module, providing flexibility in system configuration and tuning. This allows for scalable setups, making the system suitable for both temporary and permanent installations in a variety of venues.
There are three setup configurations: stacking, with support poles, or hanging, providing flexibility for any venue. The modular design supports scalable and customizable sound reinforcement for varying acoustic needs.
▶️ Installation Guide on Youtube
Specifications
| Drivers | MF 8 × 3" neodymium HF 8 × 1" neodymium |
| Frequency Response (-3dB) | 120Hz～18.5kHz |
| Dispersion (-6dB) | Hor.120° × Vert.16° |
| Max SPL | 124dB (continuous)/130dB (peak) |
| Power (RMS standards) | 800W |
| Amplifier Circuitry | Class D |
| DSP Sampling Rate | 96kHz/24-bit |
| DSP Input Channels | 1 in 2 out |
| AC Power Operating Range | AC100～240V，50/60Hz |
| THD | ≤0.05% |
| Input/Output Connectors | XLR-F/M |
| Dimensions ( HxWxD ) | 360 x 260 x 288 mm |
| Net Weight | 13 kg |
Dimensions
Downloads
Tag list
You May Like
• Drivers
2 x 12" neodymium
• Max SPL (Peak)
130dB

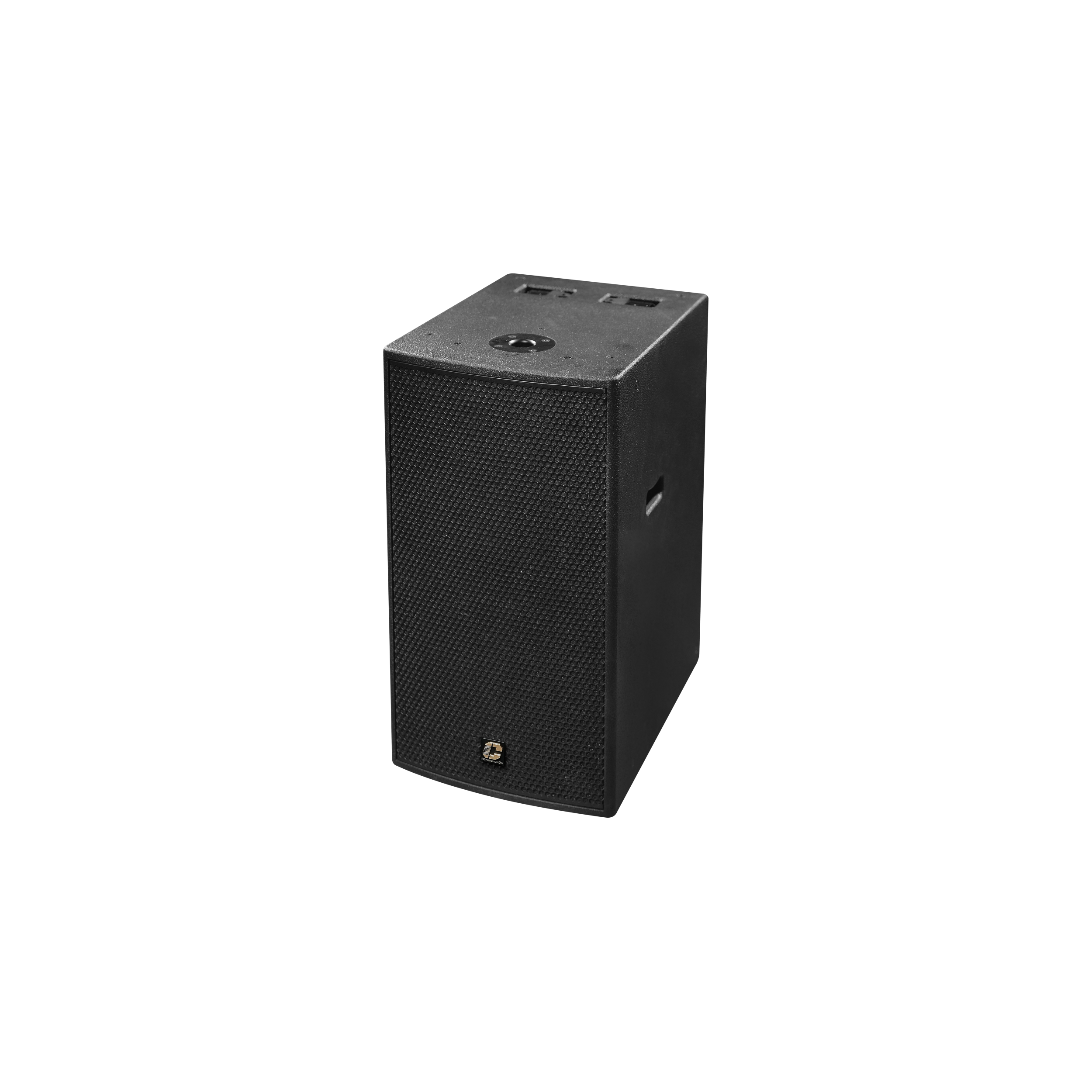

• Drivers
