Alpha-F10
• Drivers
LF: 2 x 10" neodymium
MF: 1 x 8" neodymium
HF: 2 x 2.5" neodymium
• Dispersion
Hor. 80° x Vert. 15°
• Max SPL（Peak）
LF: 133dB MHF: 141dB
- Commodity name： Alpha-F10
Overview

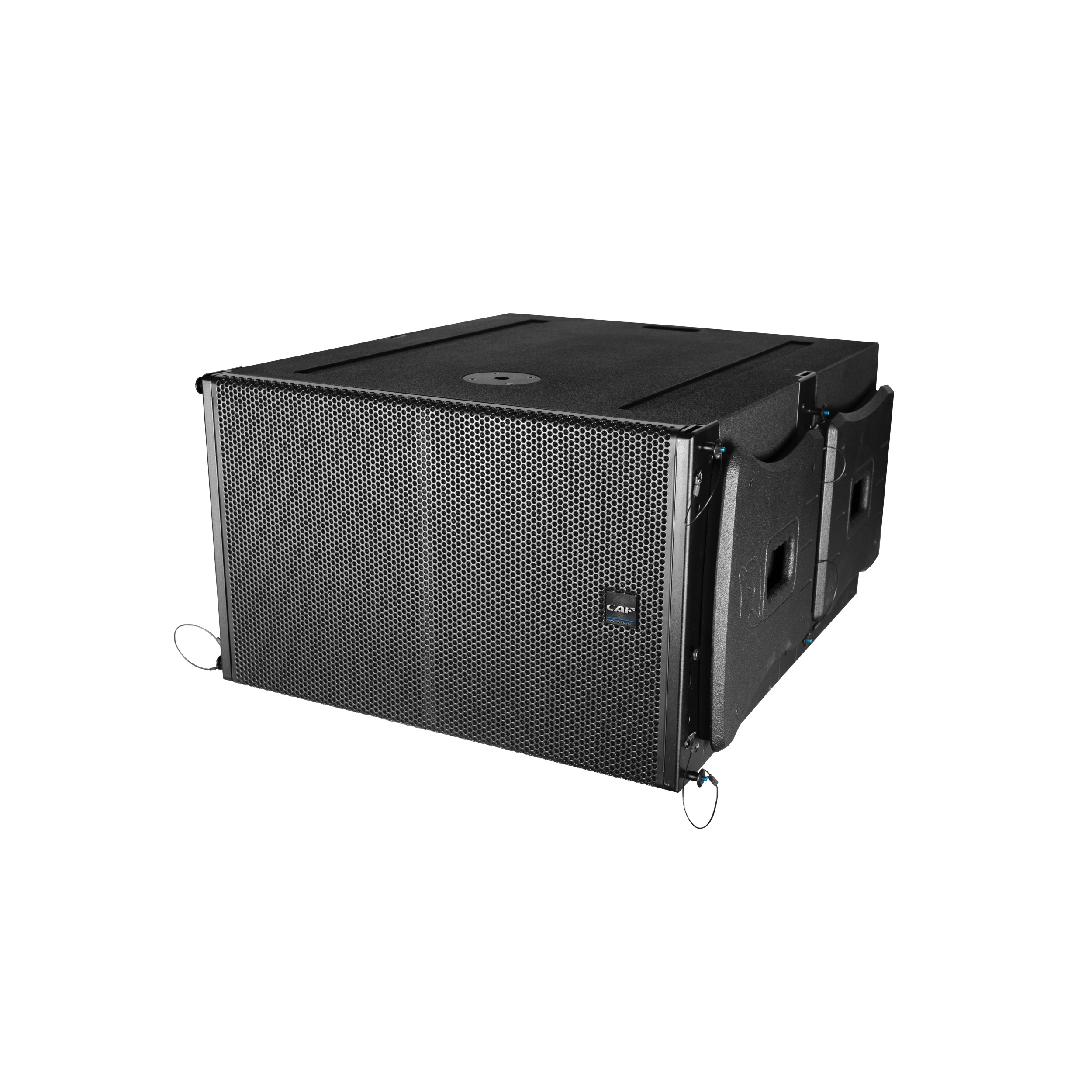

The Alpha-F10 is a high-performance 3-way line array loudspeaker designed for medium to large-scale events. It integrates two 10" neodymium woofers, an 8" neodymium midrange driver, and two 2.5" neodymium high-frequency compression drivers, delivering exceptional sound clarity and balance.
With horizontal coverage of 80° and vertical dispersion of 15°, the Alpha-F10 provides precise, even coverage for diverse venue sizes. The system achieves impressive SPLs, with mid-high peaks reaching up to 141dB, ensuring powerful and dynamic sound reproduction.
The cabinet's lightweight yet durable design makes it easy to handle, while its versatility suits both indoor and outdoor applications. GLL files are available for seamless integration into professional sound systems.
Paired with the Alpha-S215 subwoofer for extended low-frequency response to 40Hz, the Alpha-F10 is ideal for theaters, live performances, and large events, offering consistent, high-quality sound.
Specifications
| Drivers | LF 2x10"(250mm) MF 1x8"(200mm) HF 2x2.5"(65mm) neodymium |
| Frequency Response (±3dB) | 65Hz~2000kHz |
| Dispersion | Hor.80° x Vert.15° |
| Sensitivity (1M/1W) | LF 100dB MHF 110dB |
| Max SPL | LF 127dB (continuous)/133dB (peak) MHF 135dB (continuous)/141dB (peak) |
| Rated Power (RMS) | LF 500W MHF 360W |
| PEAK Power | LF 2000W MHF 1440W |
| Impedance | LF 8Ω MHF 16Ω |
| Dimensions ( HxWxD ) | 310.5 x 750 x 465.5mm |
| Net Weight | 36.65 kg |
Dimensions
