XD12
• Drivers
LF: 1 x 12"neodymium
HF: 1 x 1"neodymium
• Dispersion
Hor. 80° x Vert. 50°
• Max SPL (Peak)
130.5dB at PASSIVE
LF 124dB /HF 131dB at BIAMP
- Commodity name： XD12
Overview
XD12 is a high-output, compact full-range speaker featuring a 12" neodymium LF driver and a 1" HF compression driver. With switchable passive/bi-amp modes and a rotatable 80°×50° horn, it delivers 130.5dB peak SPL and 450W AES power in passive mode. The multi-angle birch plywood cabinet supports flexible mounting, pole installation, and rigging. Its precise coverage and detailed sound make it ideal for portable reinforcement, theater installations, or high-power stage monitoring.
Specifications
| Drivers | LF 1×12" (315mm) neodymium HF 1×1"(25mm) neodymium |
| Frequency Range(±3dB) | PASSIVE 65Hz～20kHz |
| Frequency Range(-10dB) | PASSIVE 55Hz～20kHz HF 1.8kHz～20kHz |
| Dispersion(-6dB) | Hor.80° x Vert.50° |
| Sensitivity (1M/1W) | PASSIVE 98dB BIAMP LF 98dB HF 108dB |
| Max SPL | PASSIVE 124.5dB(continuous)/130.5dB(peak) HF 125dB(continuous)/131dB(peak)c |
| Rated Power (AES) | PASSIVE 450W BIAMP LF 400W HF 50W |
| PEAK Power | PASSIVE 1800W BIAMP LF 1600W HF 200W |
| Impedance | PASSIVE 8Ω BIAMP LF 8Ω HF 16Ω |
| Dimensions ( HxWxD ) | 570 x 360 x 341 mm |
| Net Weight | 19.5 kg |

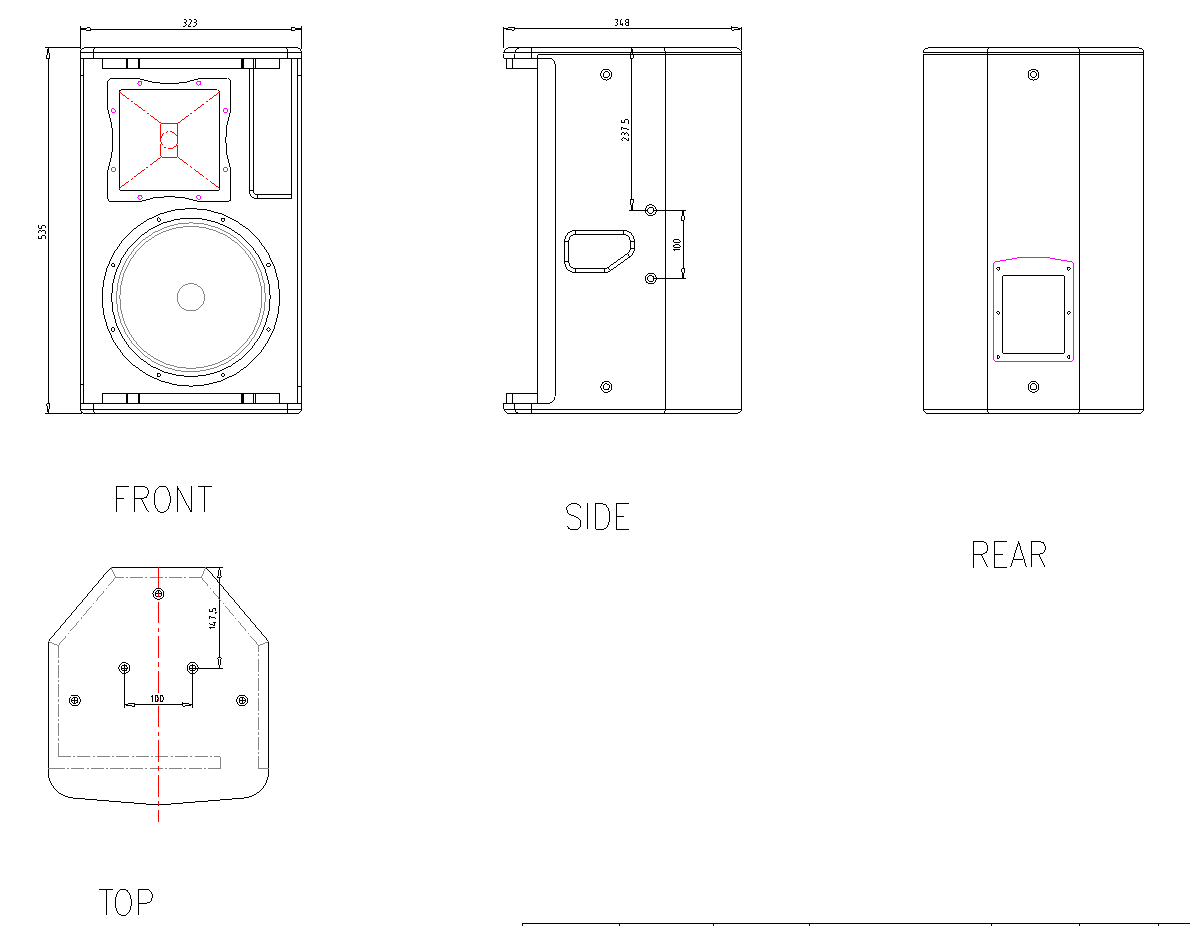

Dimensions
