LG108-A
• Drivers
LF: 1 x 8"
HF: 1 x 1.4"
• Dispersion
Hor. 80° x Vert. 80°
• Max SPL (Peak)
LF 122dB HF 125dB
- Commodity name： LG108-A
Overview
LG108-A features a compact 8" + 1.4" coaxial driver design, delivering crisp highs and punchy mids with max SPL up to 125dB. Powered by a low-distortion Class D amplifier, it offers 400W + 150W output with adjustable DSP tuning for precise system control. Its 80°x80° dispersion ensures wide, even coverage. Built from durable multilayer birch with water-based paint finish, LG108-A is ideal for high-end conference halls, multifunction rooms, or indoor reinforcement as main or fill speaker.
Specifications
| Drivers | LF 1x8"(200mm) HF 1x1.4"(34mm) |
| Frequency Range(-10dB) | LF 75Hz~3kHz HF 2kHz~20kHz |
| Dispersion | Hor.80° x Vert.80° |
| Sensitivity (1M/1W) | LF 93dB HF 103dB |
| Max SPL | LF 116dB (continuous)/122dB (peak) HF 119dB (continuous)/125dB (peak) |
| Rated Power (AES) | LF 200W HF 40W |
| PEAK Power | LF 800W HF 160W |
| Impedance | LF 8Ω HF 8Ω |
| Amplifier Circuitry | Class D |
| Amplifier Frequency Response (±0.5dB) | 20Hz~20kHz (Adjustable via DSP software control) |
| Input Sensitivity | 4dBU |
| THD | <0.03% |
| SNR | >105 |
| Damping Factor | >300 |
| Output Power | 8Ω/400W+8Ω/150W |
| Dimensions ( HxWxD ) | 478 x 302 x 330 mm |
| Net Weight | 10.21 kg |

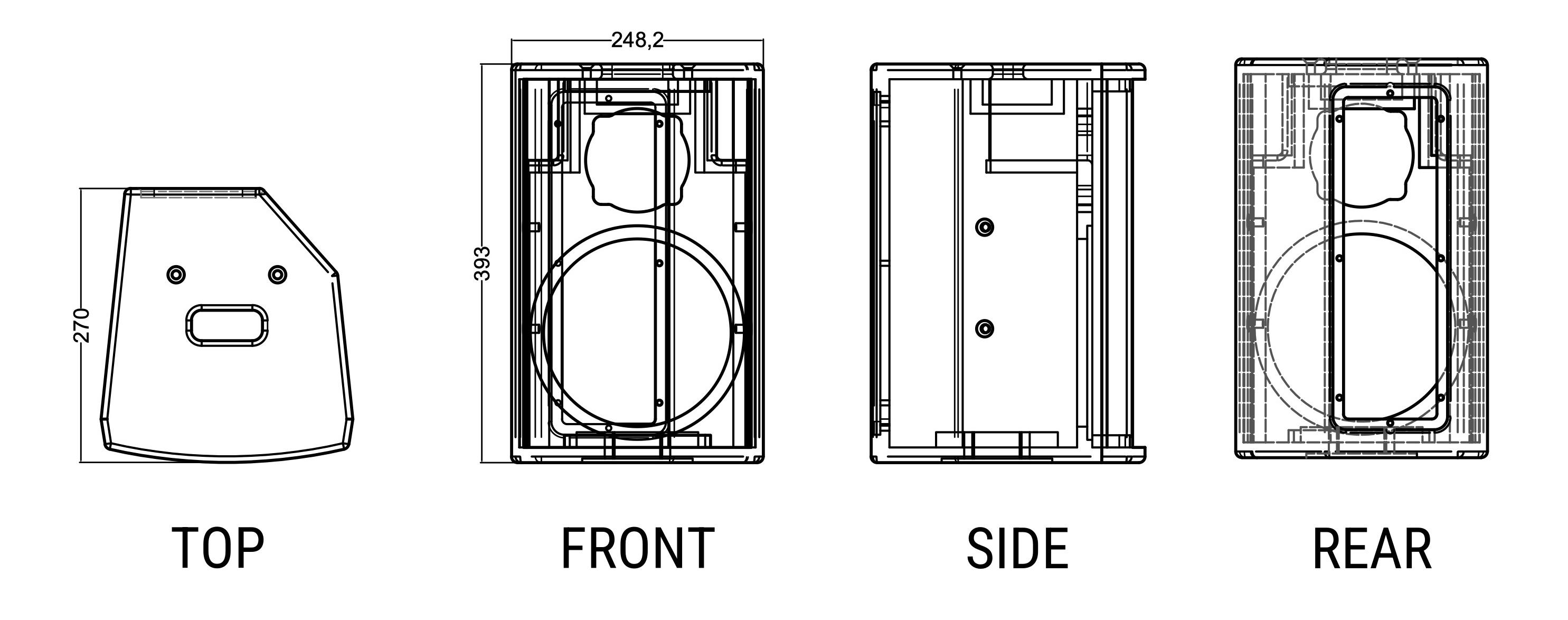

Dimensions
