W4
• Drivers
LF: 1×4"
HF: 1 x 1.4" neodymium coaxial driver
• Dispersion
110° axisymmetric
• Max SPL (Peak)
119dB
- Commodity name： W4
Overview

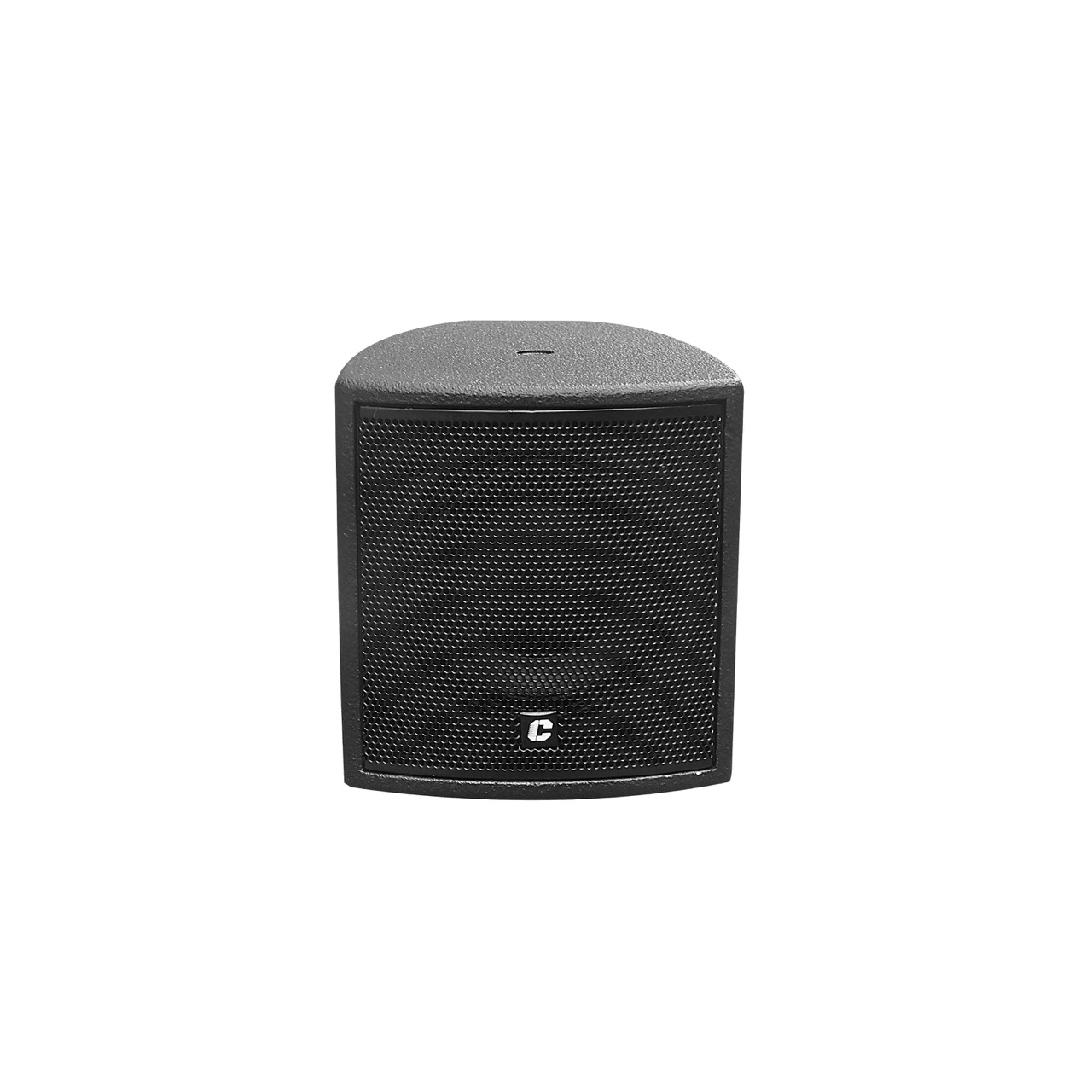

W4 is an ultra-compact passive coaxial loudspeaker designed for near-field reinforcement. It features a 4" neodymium LF driver with an integrated 1.4" HF compression driver, delivering smooth, phase-coherent sound through a 110° axisymmetric coverage. The coaxial design ensures consistent tonal balance with minimal path difference. A custom waveguide combines aluminum horn and paper cone for wide dispersion and refined detail. With a durable curved birch enclosure and 120W AES power handling, W4 excels in multipurpose, surround, or fill applications.
Specifications
| Drivers | LF 1×4" (102mm) HF 1×1.4" (36mm) neodymium coaxial driver |
| Frequency Range(-10dB) | 110Hz～20KHz |
| Dispersion(-6dB) | 110° axisymmetric |
| Sensitivity (1M/1W) | 92dB |
| Max SPL | 113dB (continuous)/119dB (peak) |
| Rated Power (AES) | 120W |
| PEAK Power | 480W |
| Impedance | 8Ω |
| Dimensions ( HxWxD ) | 141 x 137 x 157 mm |
| Net Weight | 2.45 kg |
Dimensions
