B30
• Drivers
2 x 15" neodymium
• Max SPL (Peak)
133dB
- Commodity name： B30
Overview
B30 is a powerful dual 15" subwoofer combining horn and bass reflex technologies for extended low-frequency performance and long throw. Its hybrid design ensures high efficiency and reduced distortion through full front-plane coupling, delivering controlled impulse and dynamic precision. Despite its compact size, B30 offers deep bass extension down to 35Hz and peak SPL up to 133dB, making it ideal for demanding live sound and installation environments where tight, impactful low-end is essential.
Specifications
| Drivers | 2x15"(380mm) neodymium |
| Frequency Response (±3dB) | 45Hz~200Hz |
| Frequency Response (-10dB) | 35Hz~300Hz |
| Sensitivity (1M/1W) | 97dB |
| Max SPL | 127dB (continuous)/133dB (peak) |
| Rated Power (AES) | 1000W |
| PEAK Power | 4000W |
| Impedance | 8Ω |
| Dimensions ( HxWxD ) | 706 x 446 x 800 mm |
| Net Weight | 40 kg |
Dimensions
You May Like

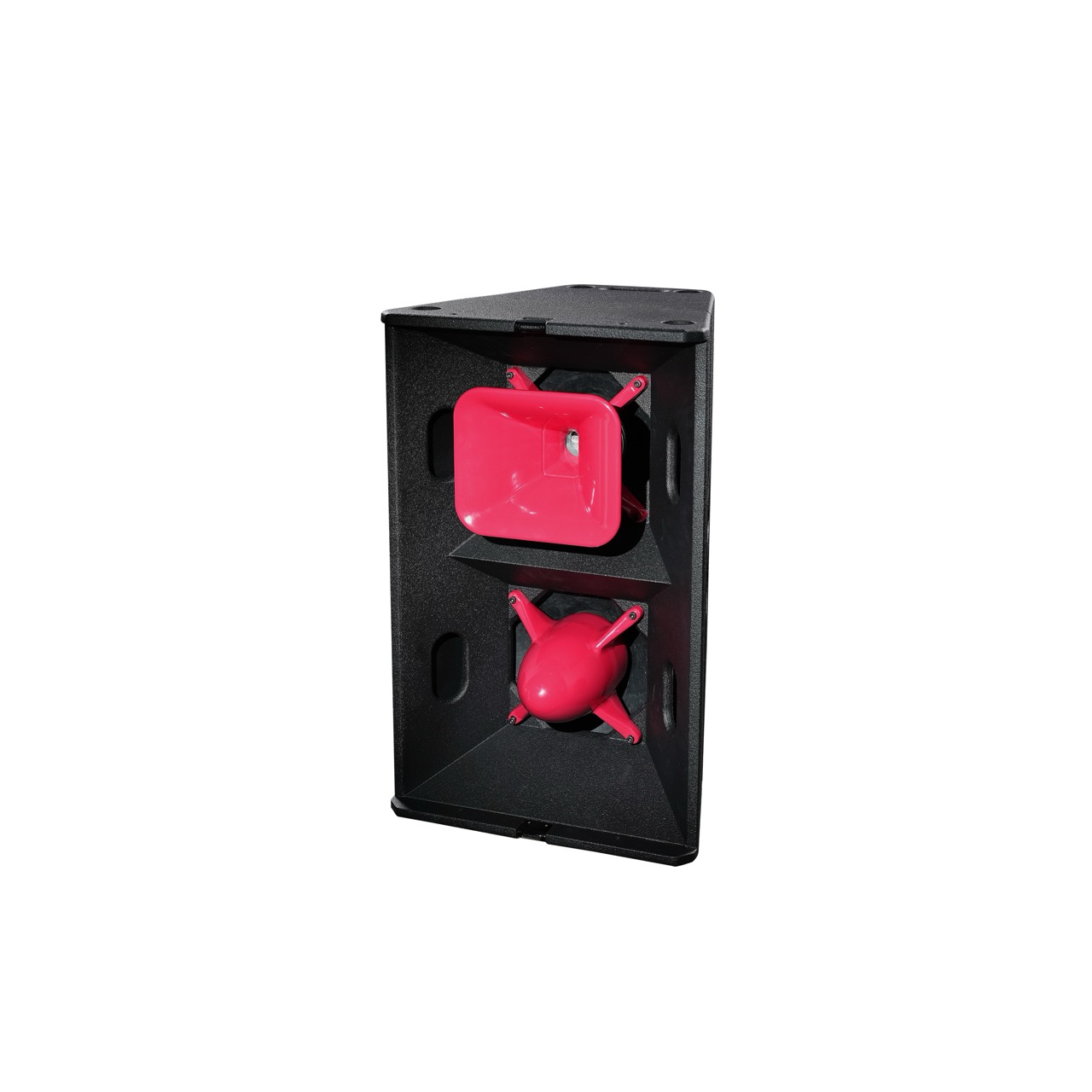

• Drivers
LF: 2×12" neodymium
HF: 1×1.4" titanium diaphragm compression driver
• Dispersion
Hor.60°x Vert.40°C
• Max SPL (Peak)
141dB at PASSIVE
LF 140dB /HF 138dB at BIAMP
