W12S
• Drivers
1 x 12"
• Max SPL (Peak)
126dB
- Commodity name： W12S
Overview

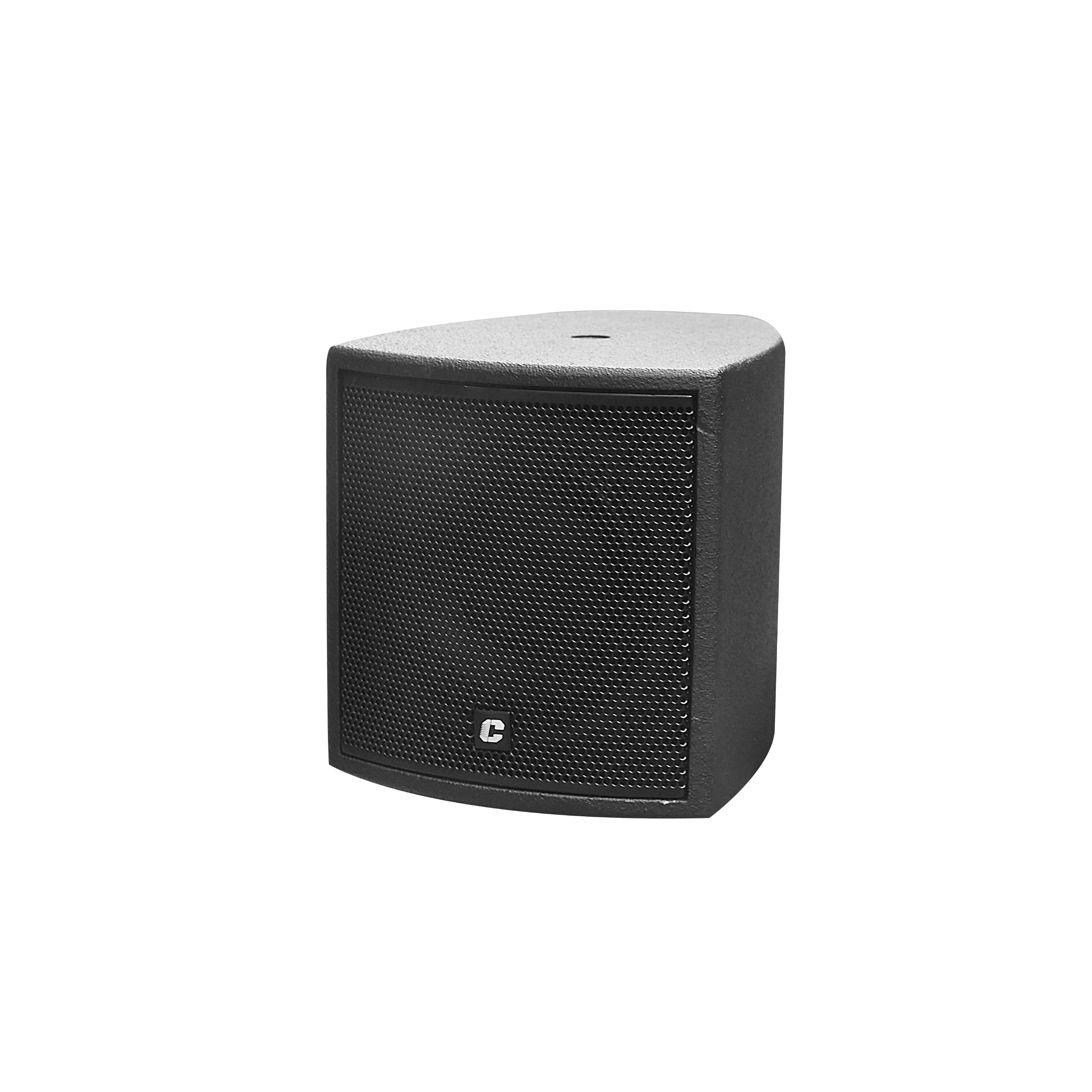

W12S is a compact passive bass reflex subwoofer featuring a high-efficiency 12" long-excursion driver with a 3" voice coil and optimized large port to minimize air noise. Delivering extended low-frequency response down to 45Hz with powerful impact and fast transient performance, it's ideal for applications requiring deep bass in a discreet form factor. The enclosure is designed for space-saving integration without compromising output, making it suitable for fixed installations or compact setups.
Specifications
| Drivers | 1x12"(300mm) |
| Frequency Response (-6dB) | 45Hz~300Hz |
| Sensitivity (1M/1W) | 93dB |
| Max SPL | 120dB (continuous)/126dB (peak) |
| Rated Power (AES) | 450W |
| PEAK Power | 1800W |
| Impedance | 8Ω |
| Dimensions ( HxWxD ) | 342 x 335 x 445 mm |
| Net weight | 17.75 kg |
Dimensions
