C8
• Drivers
MLF: 1 x 8"
HF: 1×1″, 1″throat compression driver
• Dispersion
Hor.100°× Vert.15°
• Max SPL（Peak）
MLF:127dB HF:128dB
- Commodity name： C8
Overview

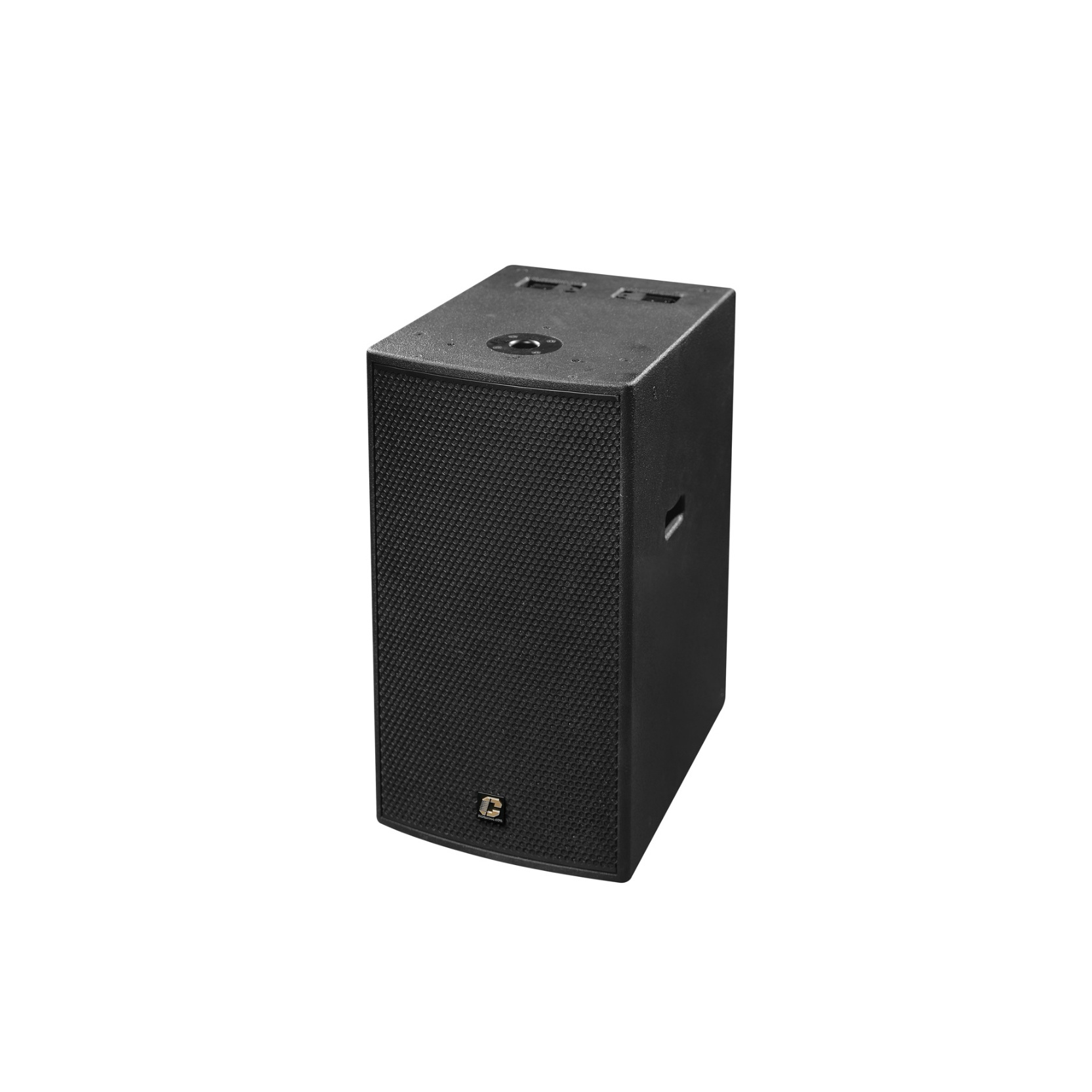

C8 is an 8-inch coaxial point source line array speaker designed for compact, high-precision sound reinforcement. The coaxial driver structure ensures phase alignment and accurate sound imaging, delivering clear and natural vocal and music reproduction. Its point-source radiation pattern offers smooth frequency response and wide coverage. Compact and lightweight, C8 is ideal for small to mid-sized venues. When paired with the C118SA subwoofer, it forms a flexible active system suitable for live events, conferences, and fixed installations.
Specifications
| Drivers | MLF 1 x 8" (200mm) HF 1×1″, 1″throat compression driver |
| Frequency Response (-6dB) | MLF 90Hz～2KHz HF 2KHz～20KHz |
| Dispersion (-6dB) | Hor.100°× Vert.15° |
| Sensitivity (1M/1W) | MLF 98dB HF 104dB |
| Max SPL | MLF 121dB (continuous)/127dB (peak) HF 122dB (continuous)/128dB (peak) |
| Rated Power (AES) | MLF 120W HF 60W |
| PEAK Power | MLF 800W HF 240W |
| Impedance | MLF 16Ω HF 16Ω |
| Input/Output Connectors | XLR-F/M |
| Dimensions ( HxWxD ) | 242.4 x 320 x 271 mm |
| Net Weight | 7.65 kg |

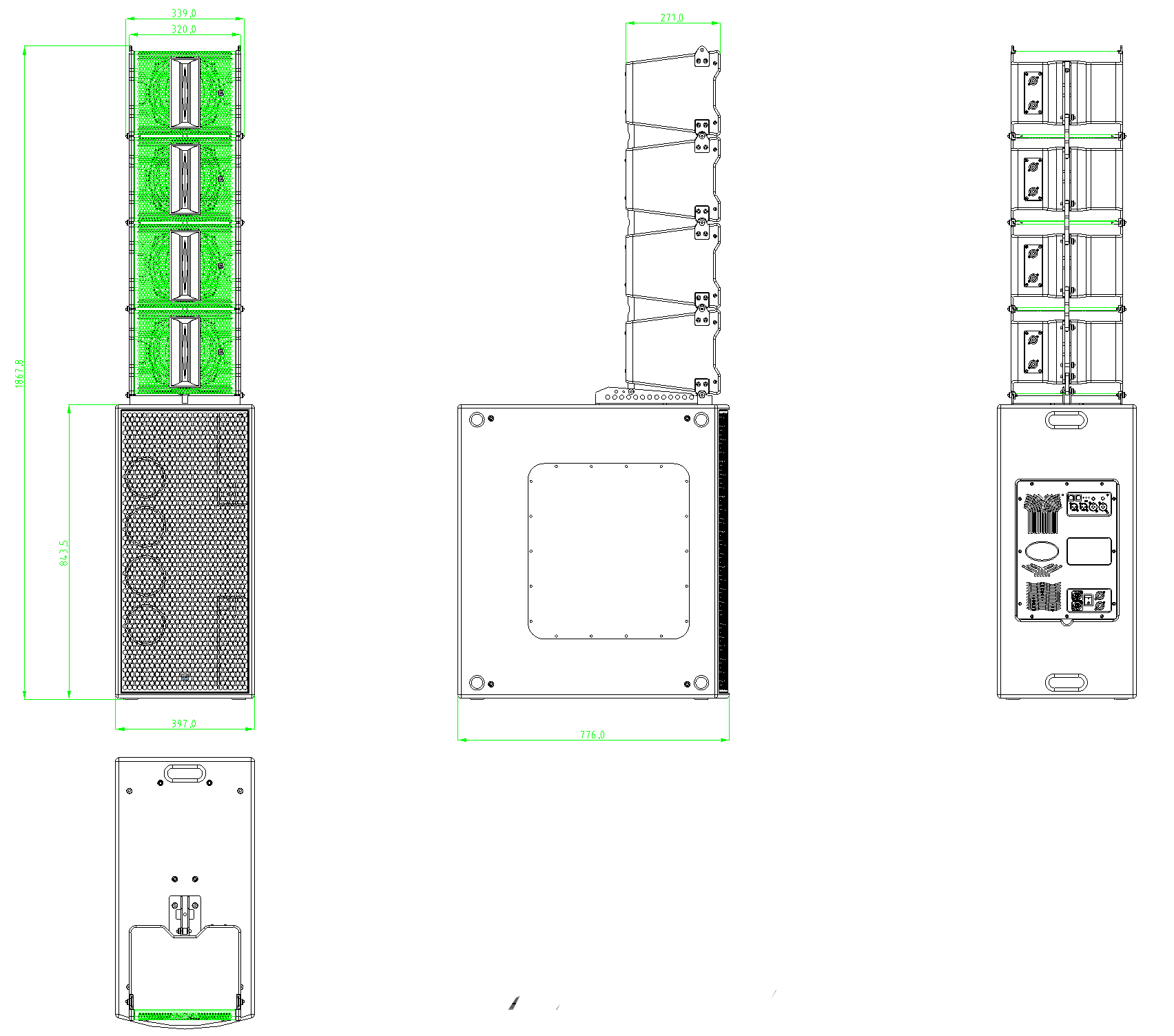

Dimensions
