C6
• Drivers
MLF: 1 x 6.5"
HF: 1×1.5″ (38mm), 1″throat compression driver
• Dispersion
Hor.90°× Vert.15°
• Max SPL（Peak）
MLF:120dB HF:128dB
- Commodity name： C6
Overview

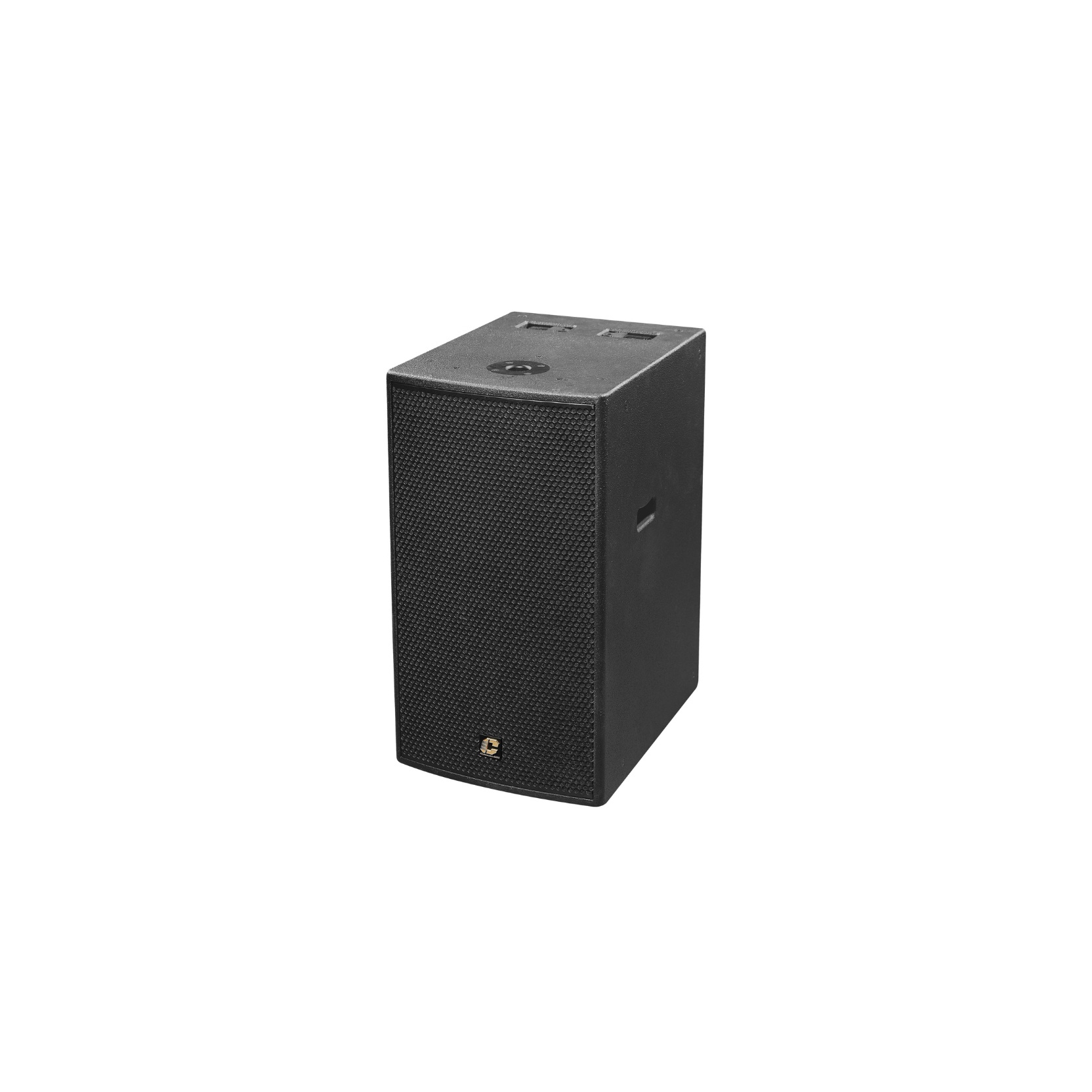

C6 is a compact point source active line array featuring a 6.5" coaxial driver. Its coaxial design delivers precise imaging and smooth frequency response, ideal for vocals and instruments. The horn-loaded structure offers powerful projection and natural sound coverage. C6 supports vertical stacking and horizontal arrays, perfect for medium-sized venues and mobile applications. When paired with the C212SA subwoofer, it forms a full-range system with enhanced low-frequency energy and extended dynamic performance.
Specifications
| Drivers | MLF 1 × 6.5"(178mm) HF 1×1.5″ (38mm), 1″throat compression driver |
| Frequency Response (-6dB) | MLF 100Hz～2KHz HF 2KHz～18.5KHz |
| Dispersion (-6dB) | Hor.90°× Vert.15° |
| Max SPL | MLF 116dB (continuous)/120dB (peak) HF 122dB (continuous)/128dB (peak) |
| Rated Power (AES) | MLF 120W HF 60W |
| PEAK Power | MLF 480W HF 240W |
| Impedance | MLF 16Ω HF 16Ω |
| Input/Output Connectors | XLR-F/M |
| Dimensions ( HxWxD ) | 196 x 270 x 211 mm |
Dimensions
