HP112PRO
• Drivers
LF: 1 x 12"
HF: 1 x 7.5"
• Dispersion
Hor. 80° x Vert. 60°
• Max SPL (Peak)
131dB
- Commodity name： HP112PRO
Overview
HP112PRO is a versatile, high-performance full-range loudspeaker designed for superior music playback and high sound pressure applications. Equipped with a custom 12" low-frequency driver and a 1.75" high-frequency compression driver coupled with an 80° x 60° horn, it ensures smooth and uniform coverage in both near and far-field listening environments. Its optimized crossover design delivers a flat frequency response and excellent phase alignment, while the HF driver features a protection circuit for reliable performance under high output. Constructed from durable birch plywood with an eco-friendly finish and protected by a perforated steel grille, HP112PRO is robust enough to withstand demanding conditions, making it ideal for various indoor applications.
Specifications
| Drivers | LF 1x12" (300mm) HF 1x1.75" (44mm) |
| Frequency Range(±3dB) | 52Hz~18kHz |
| Dispersion | Hor.80° x Vert.60° |
| Sensitivity (1M/1W) | 99dB |
| Max SPL | 125dB(continuous)/131dB (peak) |
| Rated Power (RMS) | 400W |
| PEAK Power | 1600W |
| Impedance | 8Ω |
| Dimensions ( HxWxD ) | 630 x 380 x 403 mm |
| Net Weight | 25.1 kg |

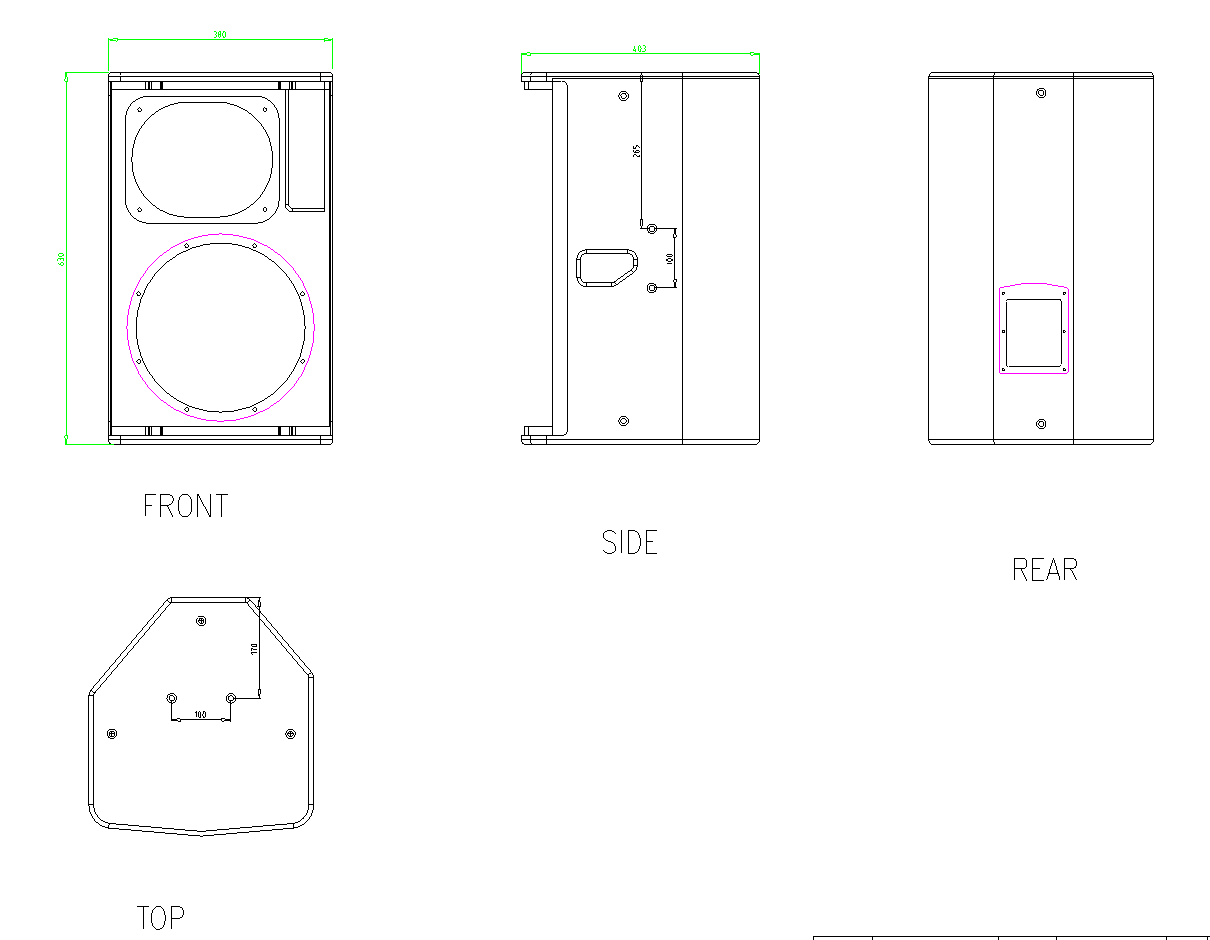

Dimensions
