R1A
• Drivers
LF: 1 x 10"
HF: 1 x 1.75"
• Dispersion
Hor. 60° x Vert. 40°
• Max SPL (Peak)
LF 129dB HF 132dB
- Commodity name： R1A

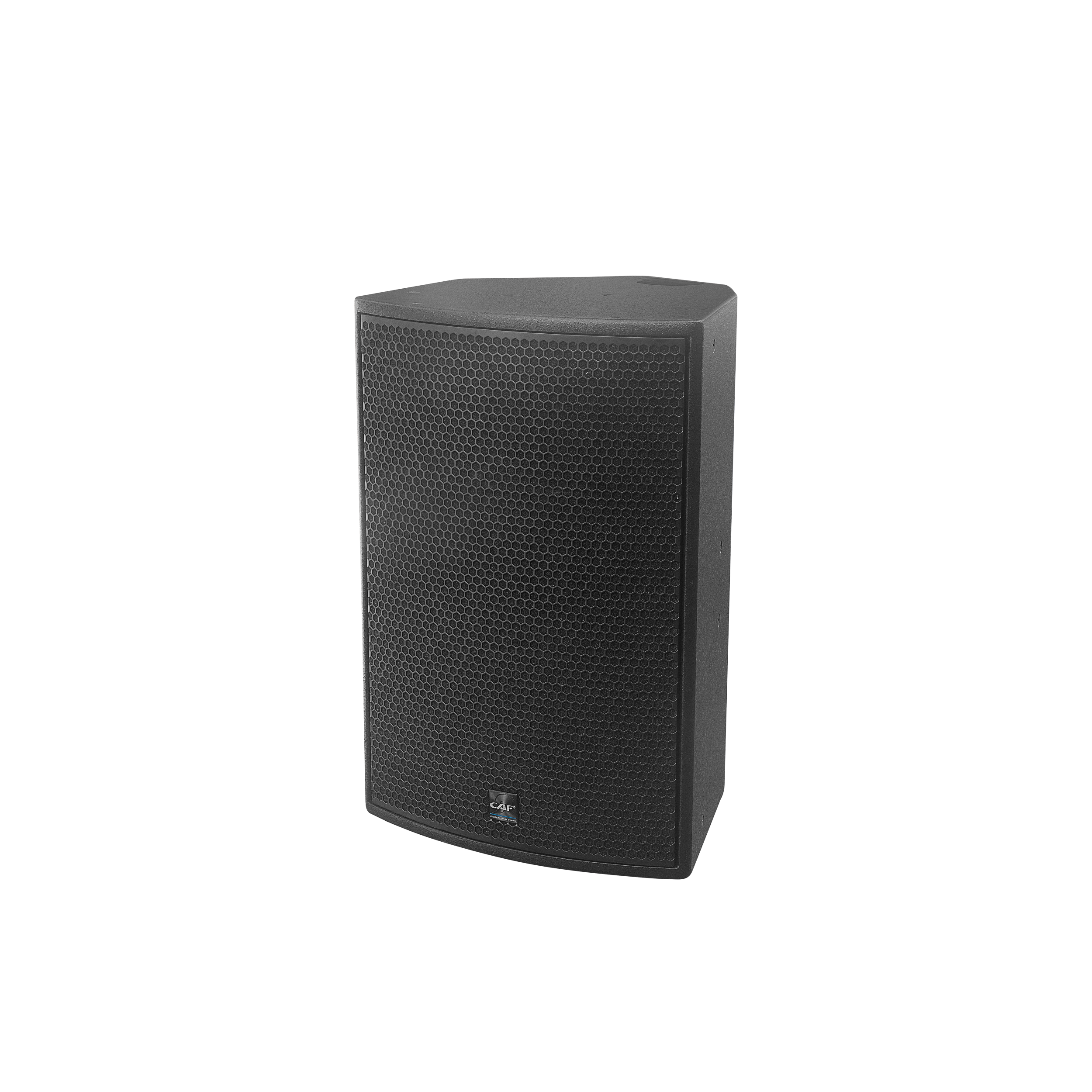

Overview
R1A features a 10" woofer and 1.75" compression driver, delivering balanced full-range sound with a peak SPL of 132dB. With punchy low-end and crisp highs, it’s ideal for small venues, mobile DJs, and compact installations. Integrated DSP ensures precise tuning, while efficient Class D amplification offers reliable performance. A smart choice where clarity and portability meet.
Specifications
| Drivers | LF 1x10"(260mm) HF 1x1.75"(44mm) |
| Frequency Range(±3dB) | LF 65Hz~3kHz HF 1.8kHz~20kHz |
| Dispersion | Hor.60° x Vert.40° |
| Sensitivity (1M/1W) | LF 98dB HF 108dB |
| Max SPL | LF 123dB (continuous)/129dB (peak) HF 126dB (continuous)/132dB (peak) |
| Rated Power (AES) | LF 300W HF 60W |
| PEAK Power | LF 1200W HF 240W |
| Impedance | LF 4Ω HF 8Ω |
| Amplifier Circuitry | Class D |
| Amplifier Frequency Response (±0.5dB) | 20Hz~20kHz (Adjustable via DSP software control) |
| Input Sensitivity | 4dBU |
| THD | <0.03% |
| SNR | >105 |
| Damping Factor | >300 |
| Output Power | 4Ω/650W+8Ω/150W |
| Dimensions ( HxWxD ) | 480 x 322.4 x 322.4 mm |
| Net Weight | 19.5 kg |

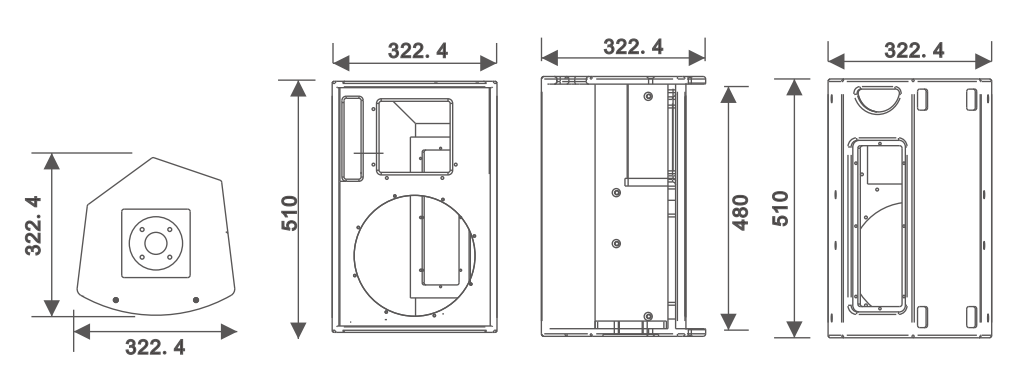

Dimensions
