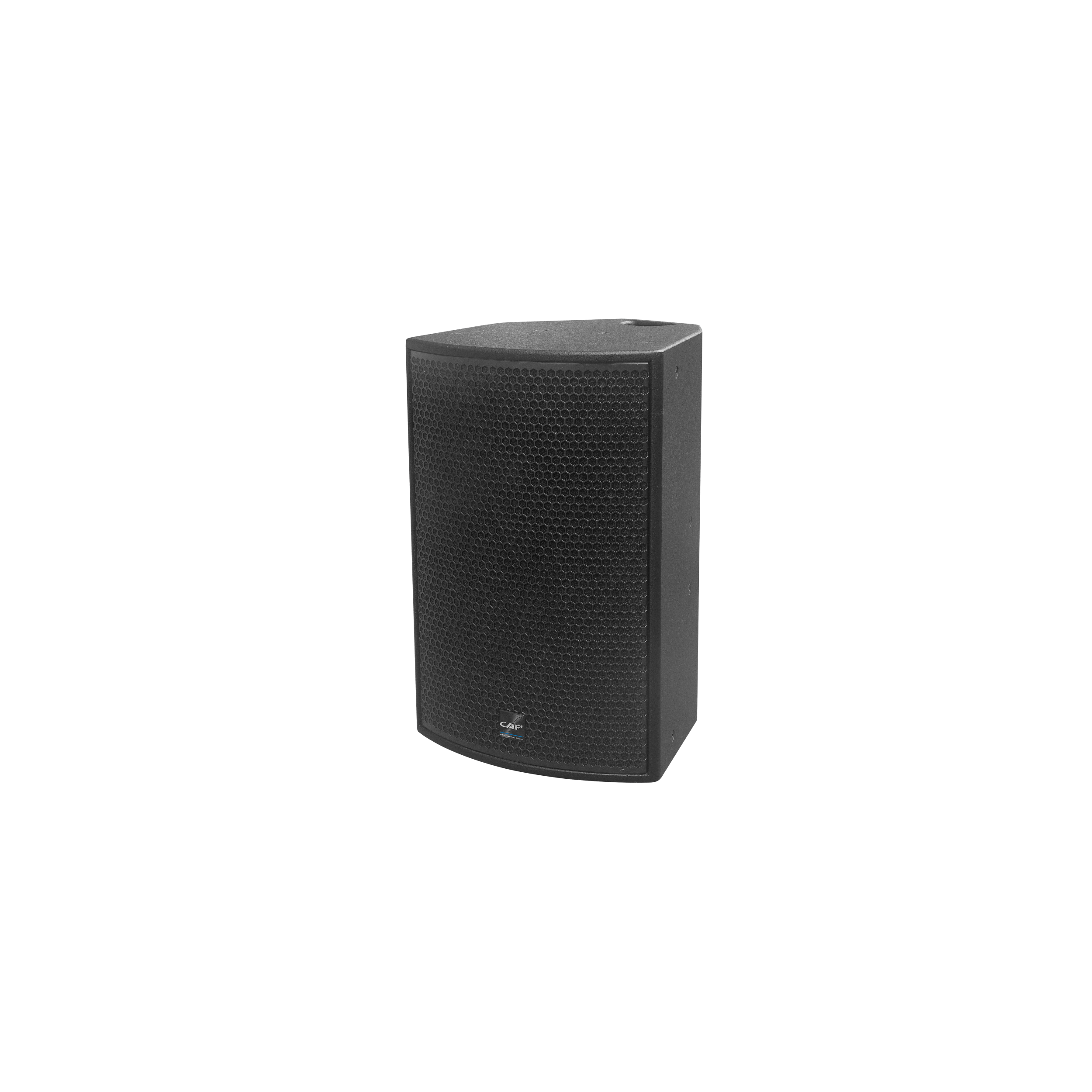

R3A
• Drivers
LF: 1 x 15"
HF: 1 x 1.75"
• Dispersion
Hor. 60° x Vert. 40°
• Max SPL (Peak)
LF 132dB HF 132dB
- Commodity name： R3A
Overview
R3A pairs a powerful 15" woofer with a 1.75" HF driver, achieving peak SPLs up to 132dB. R3A delivers punchy, room-filling sound for clubs, halls, and live stages. With intuitive DSP control and high power handling, R3A delivers impactful performance—every time.
Specifications
| Drivers | LF 1x15"(310mm) HF 1x1.75"(44mm) |
| Frequency Range(±3dB) | LF 50Hz~2kHz HF 1.8kHz~20kHz |
| Dispersion | Hor.60° x Vert.40° |
| Sensitivity (1M/1W) | LF 100dB HF 108dB |
| Max SPL | LF 126dB (continuous)/132dB (peak) HF 126dB (continuous)/132dB (peak) |
| Rated Power (AES) | LF 400W HF 60W |
| PEAK Power | LF 1600W HF 240W |
| Impedance | LF 4Ω HF 8Ω |
| Amplifier Circuitry | Class D |
| Amplifier Frequency Response (±0.5dB) | 20Hz~20kHz (Adjustable via DSP software control) |
| Input Sensitivity | 4dBU |
| THD | <0.03% |
| SNR | >105 |
| Damping Factor | >300 |
| Output Power | 4Ω/650W+8Ω/150W |
| Dimensions ( HxWxD ) | 700 x 464.9 x 449.4 mm |
