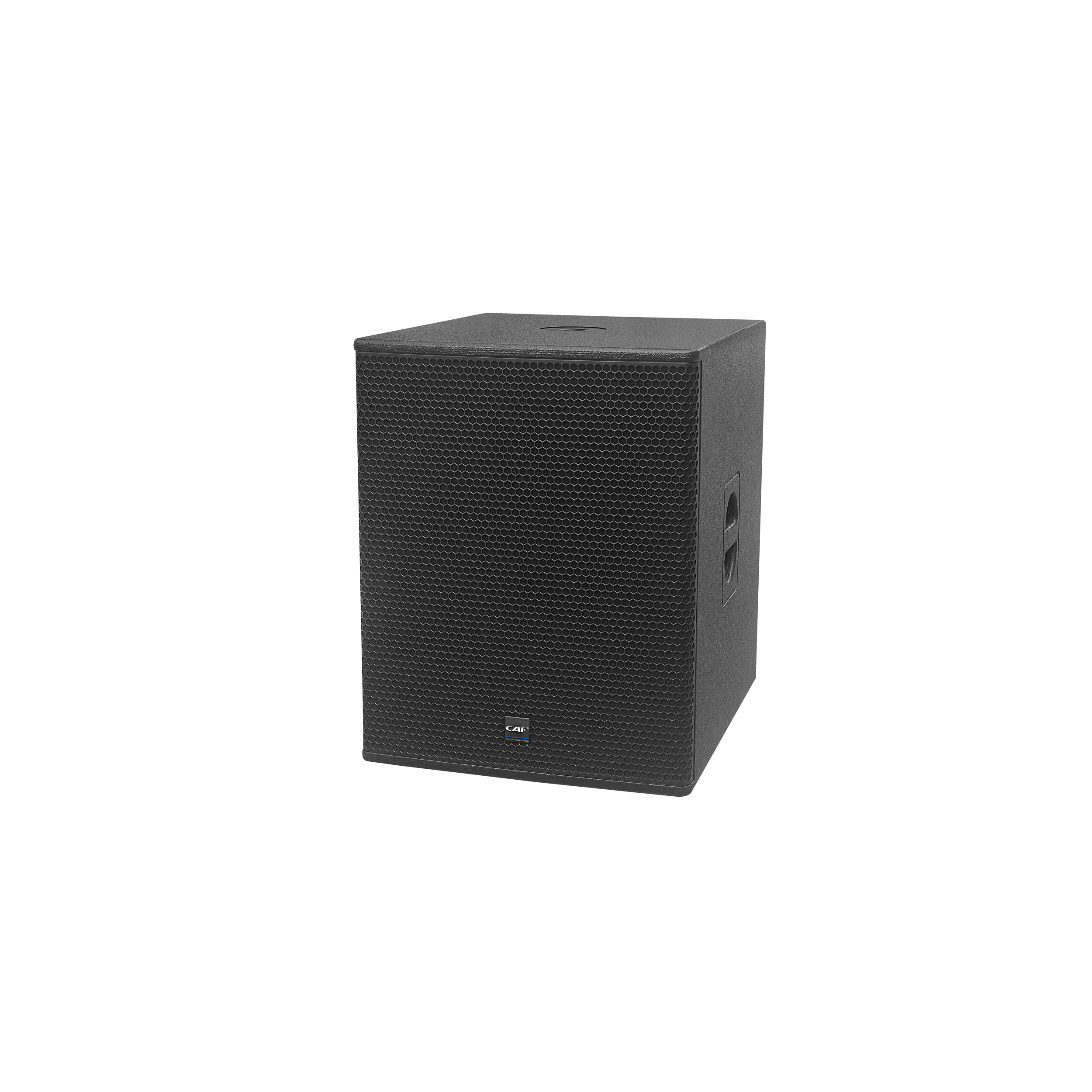

R15SA
• Drivers
1x15"
• Max SPL (Peak)
133dB
- Commodity name： R15SA
Overview
R15SA is a high-performance 15" powered subwoofer designed for compact setups that demand deep, punchy low-end. Delivering a peak SPL of 133dB and extending down to 45Hz, it brings powerful bass reinforcement to portable PA systems. With Class D amplification (1200W peak) and DSP-controlled response, R15SA ensures clean, distortion-free output in live sound, mobile events, or fixed installations.
Specifications
| Drivers | 1x15"(380mm) |
| Frequency Response (±3dB) | 45Hz~300Hz |
| Max SPL | 127dB (continuous)/133dB (peak) |
| Rated Power (AES) | 600W |
| PEAK Power | 2400W |
| Impedance | 4Ω |
| Amplifier Circuitry | Class D |
| Amplifier Frequency Response (±0.5dB) | 20Hz~20kHz (Adjustable via DSP software control) |
| Input Sensitivity | 4dBU |
| THD | <0.03% |
| SNR | >105 |
| Damping Factor | >300 |
| Output Power | 4Ω/1200W |
| Dimensions ( HxWxD ) | 583 x 465 x 565 mm |

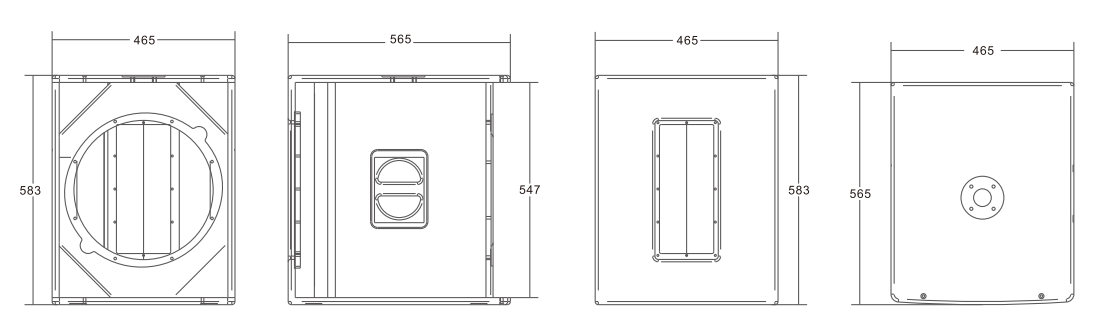

Dimensions
