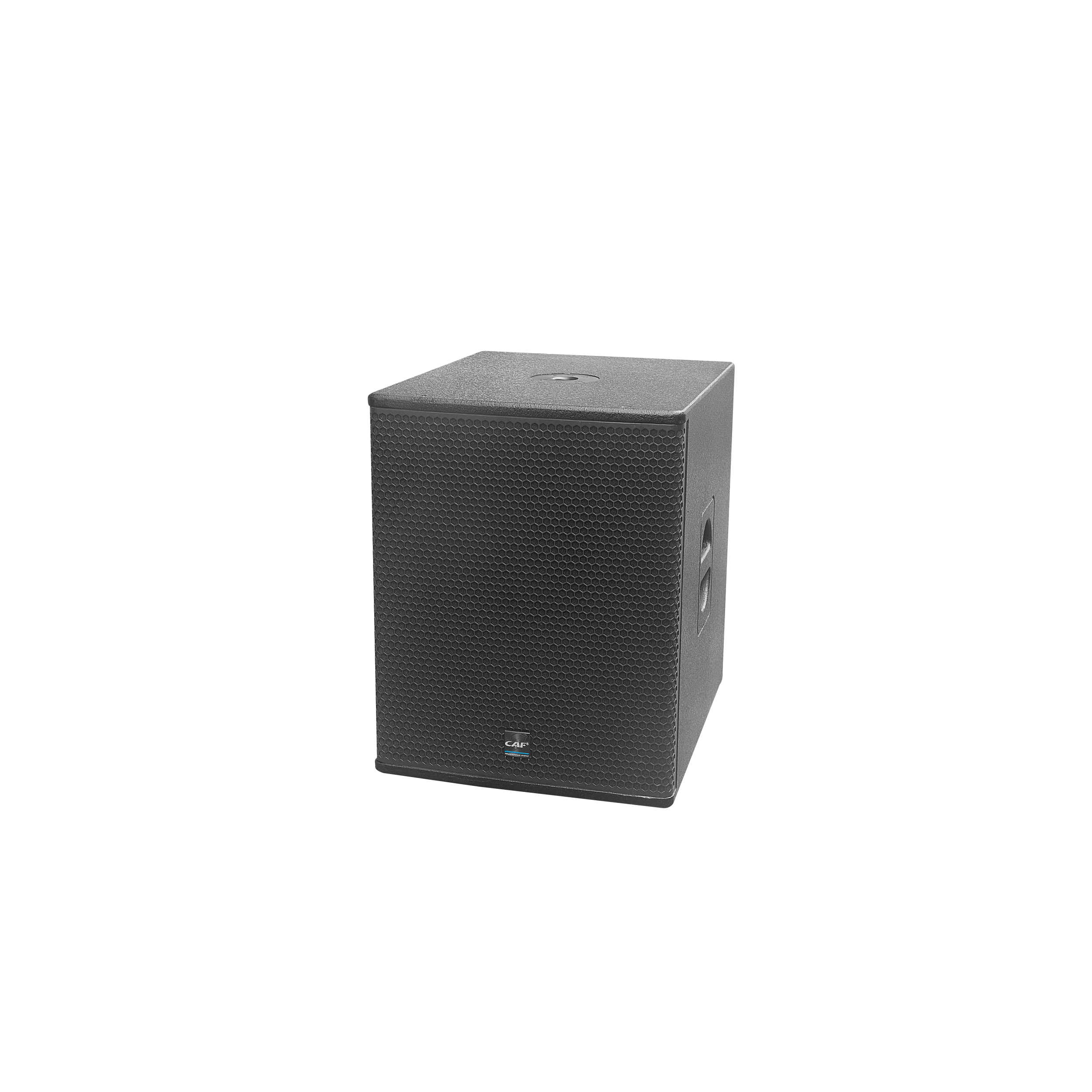

R18SA
• Drivers
1x18"
• Max SPL (Peak)
134dB
- Commodity name： R18SA
Overview
Featuring an 18" driver with a 4" voice coil, R18SA delivers extended bass down to 40Hz and up to 134dB peak SPL. Its high sensitivity (100dB) and Class D amplifier (1200W peak) ensure tight, authoritative low-end for large venues, clubs, or touring rigs. Integrated DSP enables precise tuning, making R18SA a reliable subwoofer for powerful, low-frequency performance.
Specifications
| Drivers | 1x18"(460mm) |
| Frequency Response (±3dB) | 40Hz~200Hz |
| Max SPL | 128dB (continuous)/134dB (peak) |
| Rated Power (AES) | 700W |
| PEAK Power | 2800W |
| Impedance | 4Ω |
| Amplifier Circuitry | Class D |
| Amplifier Frequency Response (±0.5dB) | 20Hz~20kHz (Adjustable via DSP software control) |
| Input Sensitivity | 4dBU |
| THD | <0.03% |
| SNR | >105 |
| Damping Factor | >300 |
| Output Power | 4Ω/1200W |
| Dimensions ( HxWxD ) | 662 x 530 x 640 mm |
Dimensions
